How to Use Siri to Control Your Home with HomeKit and Ikea TRÅDFRI

Tutorials

Smart home technology is increasing in popularity, with more people using their phones and tablets to control lighting, heating and appliances around their home.

Unfortunately for many, buying accessories to control can be expensive, with a simple disable lightbulb costing over $60.

A less costly way to dip your toe into smart home waters is to use the Ikea TRÅDFRI  range. It's a relatively simple system in comparison to the higher end products available, and crucially, works with Apple's own Home app for HomeKit. This, in turn, allows you to use Siri you control your home appliances for minimal cost.

In this tutorial we're going to use Siri to switch on a lamp that's plugged in via an Ikea Wireless Control Outlet by using the command:

Hey Siri, switch on the living room lights

Here's what you'll need before you begin:

This is the procedure we'll be following:

  1. Set up the Apple Home Hub
  2. Set up the TRÅDFRI Gateway
  3. Pair the Wireless Control Outlet with the Gateway
  4. Add the TRÅDFRI Gateway to the Home app
  5. Use Siri to control the Wireless Control Outlet

Setting up your Apple Home Hub

For HomeKit to be able to control your devices, you need to have a designated Home Hub connected to the Wifi signal in your home. Ideally, this would be an Apple TV, HomePod, or iPad (as long as the iPad never leaves your home).

iPad

  1. Go to Settings > yourname > iCloud and make sure that you're signed in to iCloud with your Apple ID.
  2. Scroll down and check that Home is turned on.
  3. Go to Settings > Home and turn on Use this iPad as a Home Hub.

Apple TV

  1. On your Apple TV, go to Settings > Users and Accounts and make sure that you're signed in to iCloud with the same Apple ID as your iOS device.
  2. After you sign in to iCloud, your Apple TV automatically sets itself up as a home hub.
  3. To see if your Apple TV is connected as a home hub, go to Settings on your Apple TV. Then go to Users and Accounts > iCloud and look under Home Hub.

HomePod

HomePod automatically sets itself up as a home hub so you can control your HomeKit accessories remotely with the Home app and create home automations. Just make sure that the iOS device you used to set up HomePod is signed in to iCloud with the Apple ID that you used to set up your HomeKit accessories in the Home app.

Setting up the TRÅDFRI Gateway

In true Ikea style, the TRÅDFRI Gateway instruction manual consists of a selection of pictures. Thankfully the process is quite easy and involves plugging the device into your router with an ethernet cable for the internet connection, and a USB cable for power.

Once installed, download the Ikea Home Smart app onto your iPhone or iPad.

Pair the Wireless Control Outlet with the Gateway

IMPORTANT: You won't be able to pair devices with your gateway unless you have a steering device - which can be a TRÅDFRI Remote Control or TRÅDFRI Switch.

Depending on the steering device you are using, you will need to follow the instructions supplied. In our case, we're using the remote control.

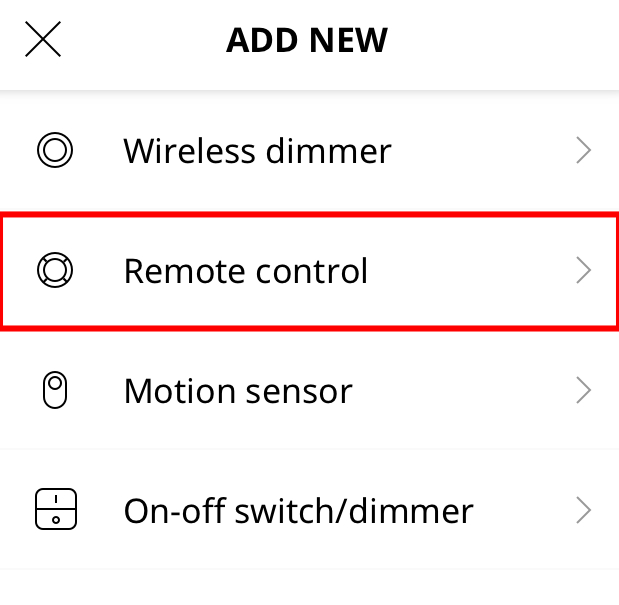

Add Remote Control
Add Control Device
  1. Take the back cover off the remote control, so you can see the battery compartment.
  2. Open the Ikea Home Smart App on your iPhone/iPad
  3. Press the plus button to Add Control Device
  4. Follow the on-screen instruction on how to pair your control device with the gateway.
  5. A message should appear to confirm you have added your control device.
  6. Press the small 'settings' icon at the top right of the screen.
  7. Tap 'Manage Lighting'.

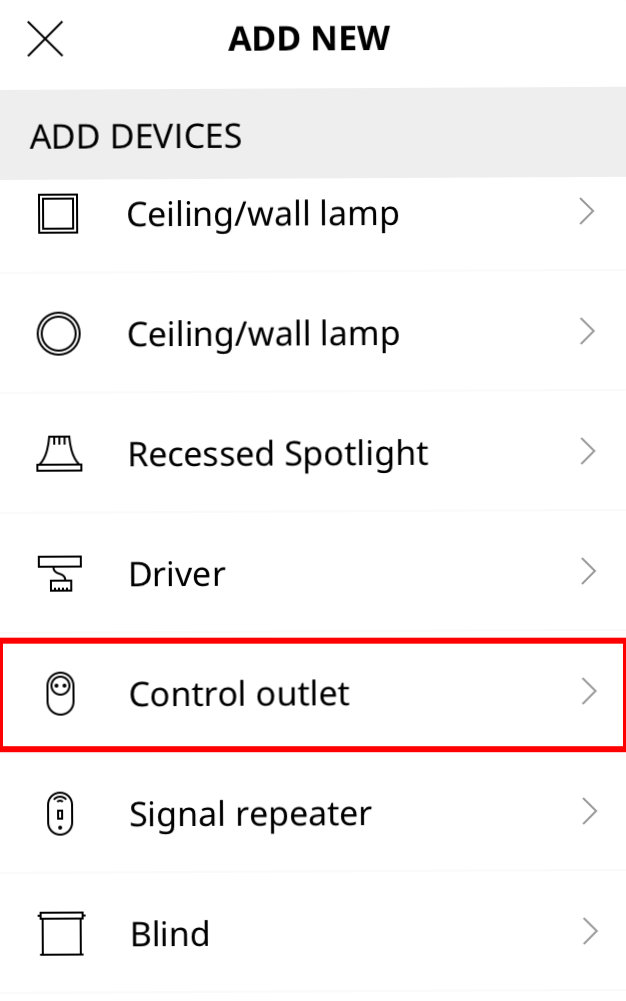

  8. Press the + button at the bottom of the screen, and tap on control outlet
  9. On the next screen, select the steering device you added a few moments ago - in our case the remote control.
  10. Follow the on-screen instructions to pair your outlet.
  11. Hold the remote control next to the outlet, and press down the small button next to the battery. The light on the outlet will fade and flash several times. Once it stays as a solid light, release the remote control button.
  12. A message should appear to confirm you have successfully added your outlet.
Add Control Outlet
Add Control Outlet


At this point, you should name your outlet for future reference. Press the 3 little dots next to the outlet name to rename it. This name will be reflected in the Home app.

Add the TRÅDFRI Gateway to HomeKit

  1. Open the Home app on your iPhone/iPad.
  2. Tap the Plus + symbol at the top of the screen and select Add Accessory.
  3. Use a camera to take a picture of the HomeKit code or QR code on the bottom of the TRÅDFRI Gateway.
  4. You'll be asked to enter the details about the device, such as which room it is in and the name you want to give it.
  5. Tap Done when you've got all the information entered.

Your TRÅDFRI Gateway is connected to your HomeKit system.

Once the gateway is connected, all of your devices should display in the Home app, according to the name you gave them in the Ikea Home Smart app.

IMPORTANT: If the name of your accessory has not synced correctly, make sure you enter it again within the Home app by pressing holding the appropriate button. Then tap the small settings icon. Siri will only be able to control accessories individually if they have a unique name.

Use Siri to control the Wireless Control Outlet

Asking Siri to control your lights via the Wireless Control Outlet simply requires referencing it by name in your instruction.

For example, if you called your outlet 'Lounge Light', you can say:

Hey Siri, turn on the Lounge Light
Hey Siri, switch off the Lounge Light

In our example, we've used the control outlet to switch a single lamp on an off, but the same method can be used to control any device that is plugged into a socket.

Using Automation and Scenes for more Advanced Control

Once your devices are added to the Home app, you can take advantage of features in HomeKit that aren't available in the Ikea Home Smart App.

You can configure all, or specific lights to come on or go off at certain times, or when it's sunset or sunrise.

You can give scenes custom names, so you could say...

Hey Siri, bedtime!

..and your lights would all switch off.
